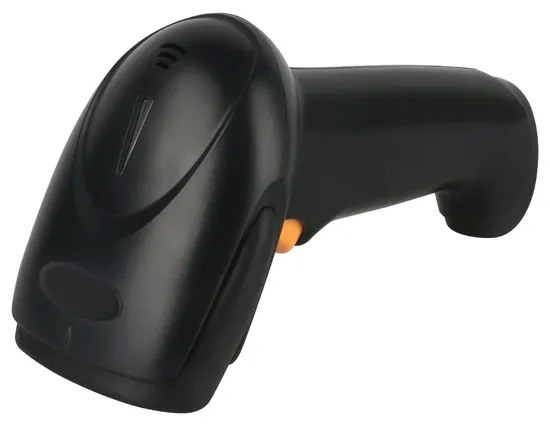

Name: 32-Bit Handheld Barcode Scanner with 640*480 Resolution and 4mil/0.1mm Reading Accuracy
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

บ้าน ผลิตภัณฑ์เครื่องสแกนบาร์โค้ด 2D

32-Bit Handheld Barcode Scanner with 640*480 Resolution and 4mil/0.1mm Reading Accuracy

รายละเอียดสินค้า:

การชำระเงิน:

จำนวนสั่งซื้อขั้นต่ำ:	1

ติดต่อ

รายละเอียดสินค้า

หมายเลขรุ่น:	DS6100C	ประเภทอินเตอร์เฟส:	USB
ความเร็วในการสแกน:	300 สแกน/วินาที	องค์ประกอบสแกน:	CMOS
ซีพียู:	32 บิต	ปณิธาน:	640*480
อัตราส่วนความละเอียด:	4mil/0.1mm	ความเร็วในการถอดรหัส:	25ซม./ส
ความชัดลึก:	10mm-500mm	โหมดสแกน:	คู่มือความรู้สึกอัตโนมัติต่อเนื่อง
พิมพ์คอนทราสต์:	25%	น้ำหนัก:	110 กรัม
มิติ:	L150mm * W70mm * H95mm	แหล่งจ่ายไฟ:	DC 5V@150mA (งาน)
อุณหภูมิการทำงาน:	-20ºCถึง55ºC
เน้น:	32-Bit Handheld Barcode Scanner , 640*480 Resolution 2D Barcode Scanner , 4mil/0.1mm Reading Accuracy USB Barcode Scanner

DS6100CG Handheld Barcode Scanner

The DS6100CG is a high-performance 2D wireless barcode scanner featuring advanced CMOS image recognition technology. Designed for versatility, it efficiently reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehousing, logistics, healthcare, retail, mobile payments, and inventory management applications.

Key Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D and 2D barcodes (4mil resolution)
Multiple interface options: USB and Wireless 2.4G
Ultra-low power consumption design
Bluetooth connectivity with long wireless range
Compatible with mobile devices and PCs
Wide application in supermarkets, warehouses, and retail chains

Technical Specifications

Performance

Scan Type	CMOS
Light Source	White light
CPU	32-bit
Resolution	640×480
Minimum Resolution	≥4mil/0.1mm (PCS90%, CODE 39)
Decoding Speed	25CM/S
Depth of Field	5mil: 50-130mm, 13mil: 50-270mm
Scan Modes	Manual, Auto Sense, Continuous
Indicator	LED, Buzzer
Scan Angle	Roll±360°, Pitch±50°, Skew±50°
Print Contrast Signal	≥25%
Ambient Light	Dark environment, indoor natural light

Supported Symbologies

1D Barcodes	Codabar, Code39, Code32, ITF25, Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded, ISBT
2D Barcodes	PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

Physical Parameters

Weight	≈160g (USB)
Dimensions	150mm × 70mm × 95mm
Interface	USB
Power Supply	DC 5V@150mA (work)
IP Rating	IP42
Supported Systems	Windows, Mac OS, iOS, Linux, Unix, Android

Environmental Specifications

Operating Temperature	-20ºC to 55ºC
Storage Temperature	-20ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m
Temperature Test	30 minutes high temp (60ºC), 30 minutes low temp (-20ºC)
Transport Vibration Test	10H@125RPM

Included Accessories

Cable	USB, for device connection and charging
Receiver	For wireless data transmission

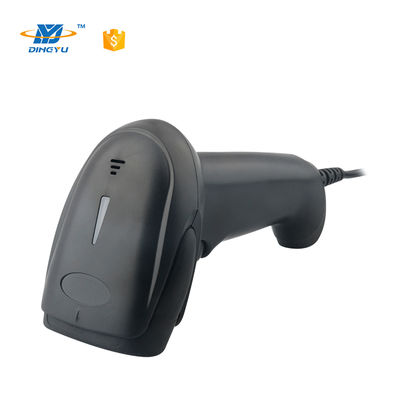

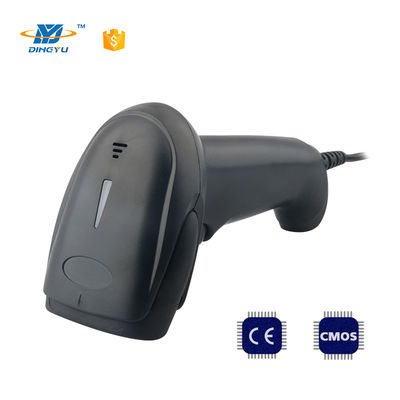

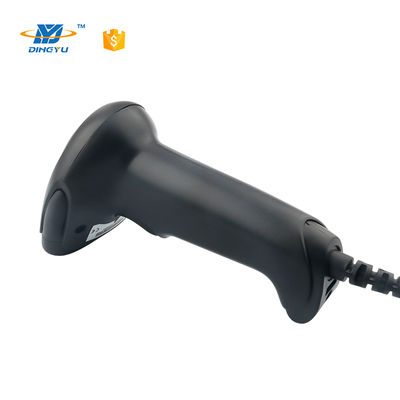

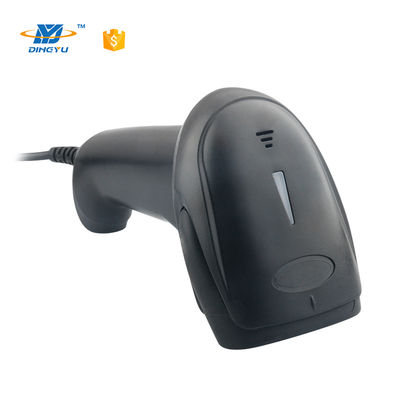

Product Images

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan is a professional manufacturer with 18 years of experience in barcode scanner development. We maintain strict quality control with professional testing equipment (engine age test, wire bend machine, switch life test, shock resistance test). All our scanners are CE, FCC, and ROHS certified.

Q2: What quality control measures do you implement?

We conduct rigorous testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes thorough testing before shipment.

Q3: What is the warranty period for your barcode scanners?

We provide a 12-month warranty for all our barcode scanners.

Q4: How do you maintain stable performance?

We implement flow line production with multiple quality checkpoints. Each product is tested at least 4 times before delivery.

Q5: Do you offer OEM/ODM services?

Yes, we provide OEM services including custom logos, packaging, and manuals. Our technical team supports ODM development for specialized requirements.

Q6: What are your company's strengths?

As a professional scanner manufacturer, we have dedicated departments for R&D, production, marketing, and customer service, each led by experienced directors.

Q7: Do I need to install drivers?

No, our scanners support plug-and-play functionality across Windows, Mac OS, iOS, Linux, UNIX, and Android systems without requiring driver installation.
