Name: DS6530-1D 1D Barcode Scanner 300 scans/sec USB RS232
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

บ้าน ผลิตภัณฑ์เครื่องสแกนบาร์โค้ด 1D

DS6530-1D 1D Barcode Scanner 300 scans/sec USB RS232

รายละเอียดสินค้า:

การชำระเงิน:

จำนวนสั่งซื้อขั้นต่ำ:	1

ติดต่อ

รายละเอียดสินค้า

หมายเลขรุ่น:	DS6530-1D	ประเภทอินเตอร์เฟส:	USB
ความเร็วในการสแกน:	300 สแกน/วินาที	องค์ประกอบสแกน:	CCD
ปณิธาน:	2500	อัตราส่วนความละเอียด:	3mil/0.076mm
ความชัดลึก:	30 มม. ~ 700 มม.	โหมดสแกน:	คู่มือ, ต่อเนื่อง, ความรู้สึกอัตโนมัติ, กระพริบ
พิมพ์คอนทราสต์:	20%	น้ำหนัก:	230ก
ขนาด:	l152mm * w66mm * h95mm	แหล่งจ่ายไฟ:	DC 5V@80MA
อุณหภูมิการทำงาน:	-20ºCถึง50ºC	อุณหภูมิการจัดเก็บ:	-40ºCถึง60ºC
ความชื้น:	5% ถึง 95%
เน้น:	1D barcode scanner USB RS232 , high-speed barcode scanner 300 scans/sec , DS6530-1D barcode scanner with warranty

DS6530-1D High-Performance 1D Barcode Scanner

Product Overview

The DS6530-1D is a professional-grade 1D barcode scanner featuring advanced CCD image recognition technology. Designed for reliability and efficiency, it effortlessly reads barcodes from various surfaces including paper, products, and digital screens.

Key Features

Ergonomic design for comfortable extended use
Comprehensive compatibility with all mainstream 1D barcodes
High-speed decoding with 300 scans per second capability
Multi-language and system support
Dual interface options: USB and RS232
Versatile scanning modes: manual, continuous, auto-sense, and flashing
Multiple feedback options: buzzer, LED, and vibration

Applications

Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset tracking.

Technical Specifications

Performance Parameters

Communication	USB
Scan Type	Linear CCD Sensor
Resolution	2500 (≥3mil/0.076mm at PCS90%, CODE 39)
Depth of Field	30mm~700mm
Decoding Speed	300 times/second
Scan Modes	Manual, continuous, auto-sense, flashing
Scan Angles	Roll: ±30°, Pitch: ±60°, Skew: ±60°
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, and more

Physical Parameters

Weight	Approximately 230g (scanner only)
Dimensions	152mm (L) × 66mm (W) × 95mm (H)
Communication Modes	USB, RS232
Interface Type	USB, DB9
Power Supply	DC 5V@80mA (operational)

Environmental Specifications

Operating Temperature	-20°C to 50°C
Storage Temperature	-40°C to 60°C
Humidity	5% to 95% (non-condensing)
Transport Vibration Test	10H@125RPM

Included Accessories

USB Cable for host device connection
RS232 Cable with USB power supply

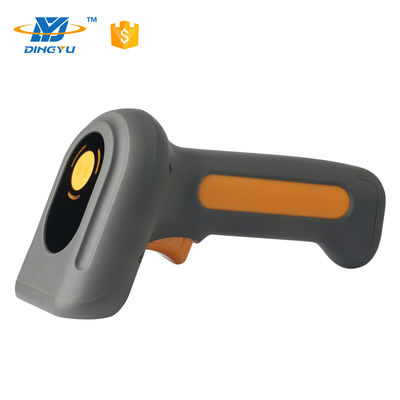

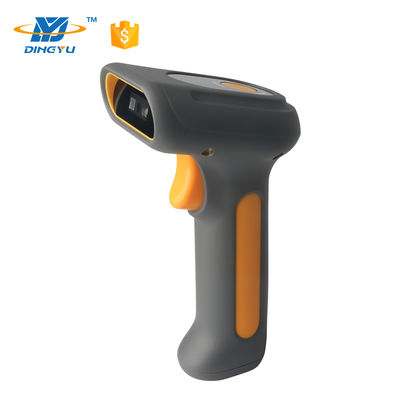

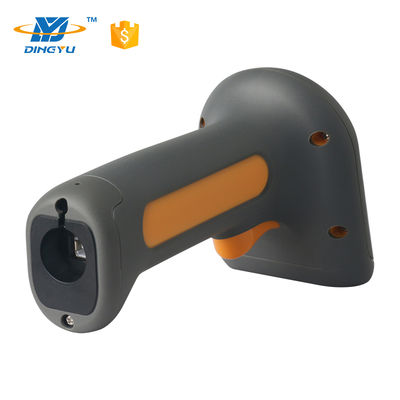

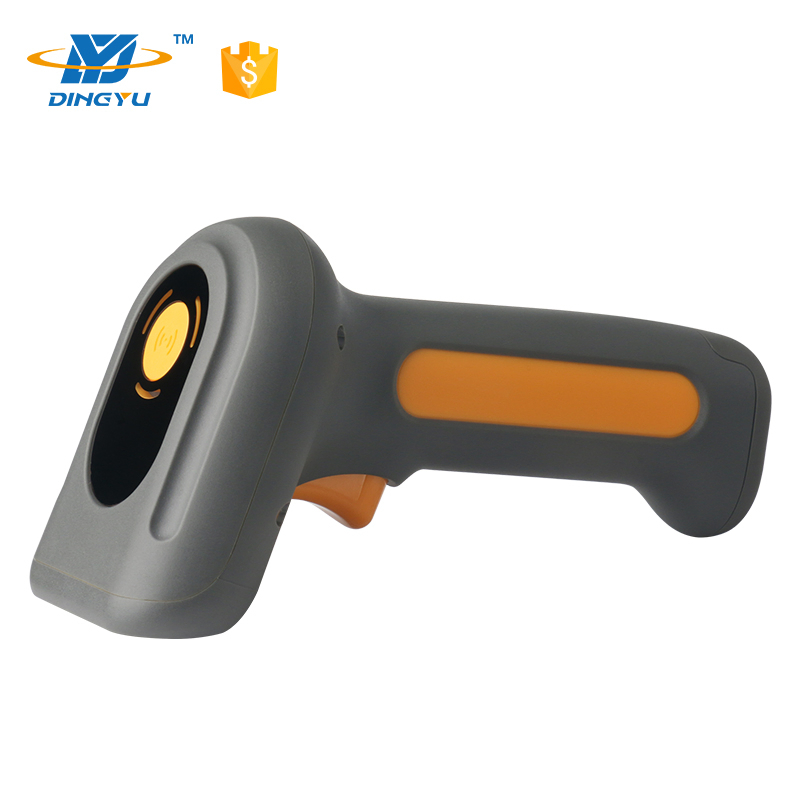

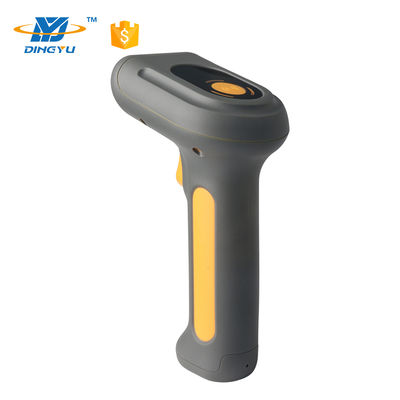

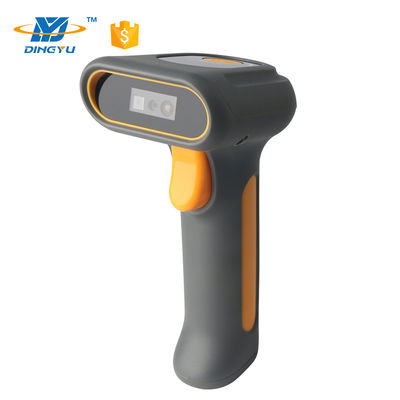

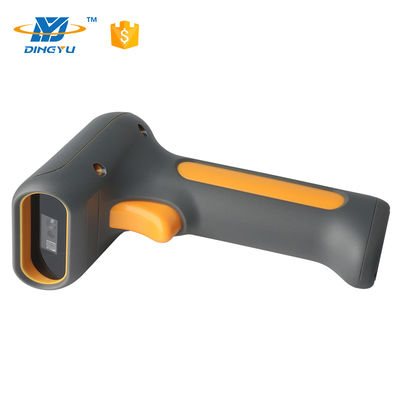

Product Images

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan is a professional manufacturer with 18 years of experience in barcode scanner development. Our products undergo rigorous testing including engine age tests, wire bend tests, switch life tests, and shock resistance tests. All scanners are CE, FCC, and ROHS certified.

Q2: What is your quality control process?

We conduct extensive testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes thorough inspection before shipment.

Q3: What is the warranty period?

All our barcode scanners come with a 12-month warranty.

Q4: How do you maintain stable performance?

We implement assembly line production with multiple quality checks. Each product is tested at least four times before delivery.

Q5: Do you offer OEM/ODM services?

Yes, we provide OEM services including custom branding and packaging. Our technical team supports ODM development projects.

Q6: What are your company's strengths?

We have specialized departments for R&D, production, and sales, each led by experienced directors. This structure ensures professional product development and excellent customer service.

Q7: Are drivers required for operation?

No, our scanners support plug-and-play functionality across multiple operating systems including Windows, Mac OS, iOS, Linux, UNIX, and Android.
