Name: DS6530-1D 1D Barcode Scanner 300 Scans/Sec USB CCD
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

บ้าน ผลิตภัณฑ์เครื่องสแกนบาร์โค้ด 1D

DS6530-1D 1D Barcode Scanner 300 Scans/Sec USB CCD

รายละเอียดสินค้า:

การชำระเงิน:

จำนวนสั่งซื้อขั้นต่ำ:	1

ติดต่อ

รายละเอียดสินค้า

หมายเลขรุ่น:	DS6530-1D	ประเภทอินเตอร์เฟส:	USB
ความเร็วในการสแกน:	300 สแกน/วินาที	องค์ประกอบสแกน:	CCD
ประเภทสแกน:	เซ็นเซอร์ CCD เชิงเส้น	ปณิธาน:	2500
อัตราส่วนความละเอียด:	3mil/0.076mm	ความชัดลึก:	30 มม. ~ 700 มม.
ความเร็วในการถอดรหัส:	300 ครั้ง/วินาที	พิมพ์คอนทราสต์:	20%
น้ำหนัก:	230ก	มิติ:	l152mm * w66mm * h95mm
โหมดการสื่อสาร:	ยูเอสบี, RS232	แหล่งจ่ายไฟ:	DC 5V@80MA
อุณหภูมิการทำงาน:	-20ºCถึง50ºC
เน้น:	1D barcode scanner USB CCD , DS6530-1D barcode scanner 300 scans/sec , USB 1D barcode scanner with warranty

DS6530-1D High Performance 1D CCD Wired Barcode Scanner

The DS6530-1D is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. Designed for versatile use, it efficiently reads barcodes from paper, products, screens, and various media surfaces. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset tracking.

Key Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D barcodes with ease
High-performance processor enables fast decoding (4mil resolution)
Supports multiple languages and operating systems
Dual interface options: USB and RS232
Optimized for supermarket, warehouse, mobile payment, and chain store applications

Technical Specifications

Performance Parameters

Communication	USB
Scan Type	Linear CCD Sensor
Resolution	2500
Resolution	≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field	30mm~700mm
Decoding Speed	300 times/second
Scan Modes	Manual, continuous, auto-sense, flashing
Prompt Methods	Buzzer, LED, vibration
Scan Angle	Roll: ±30°, Pitch: ±60°, Skew: ±60° (Test Conditions: CODE39, 10mil/0.25mm, PCS90%)
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.

Physical Parameters

Weight	Approximately 230g (scanner only)
Dimensions	152mm (L) × 66mm (W) × 95mm (H)
Communication Modes	USB, RS232
Interface Types	USB, DB9
Power Supply	DC 5V@80mA (operating)

Environmental Specifications

Operating Temperature	-20°C to 50°C
Storage Temperature	-40°C to 60°C
Humidity	5% to 95% (non-condensing)
Transport Vibration Test	10H@125RPM

Included Accessories

Cables

USB Cable: Connects the DS6530-1D to a host device

RS232 Cable: Connects the DS6530-1D to a host device with USB supply cable

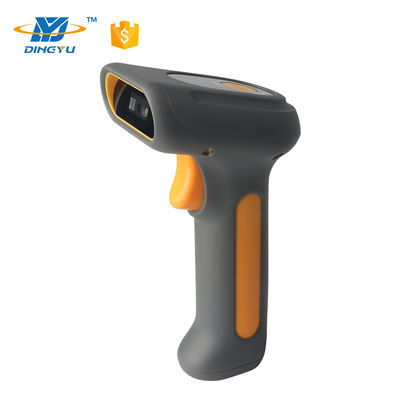

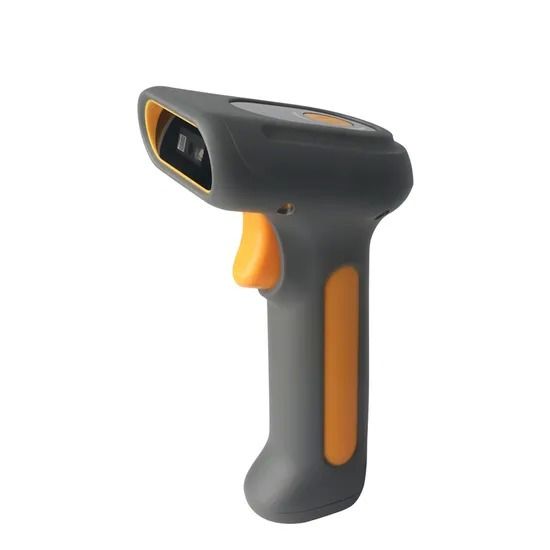

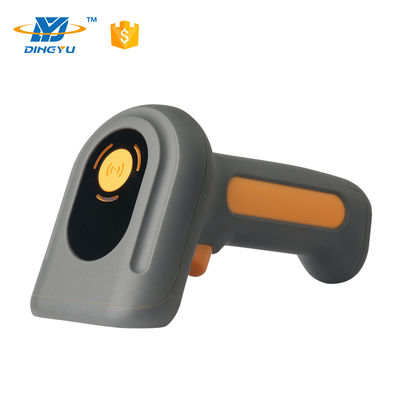

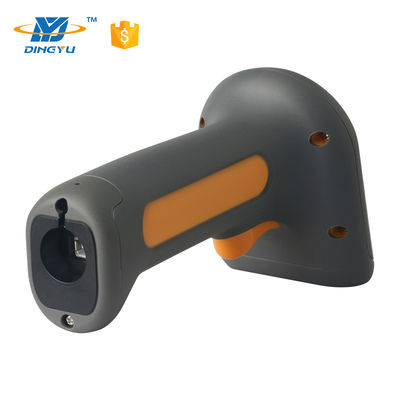

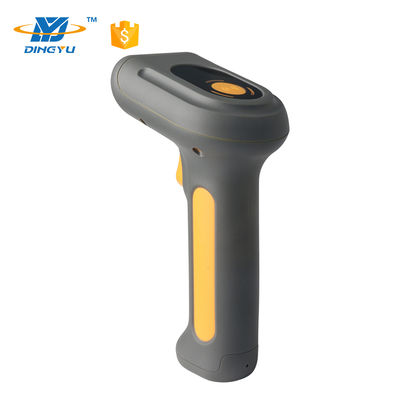

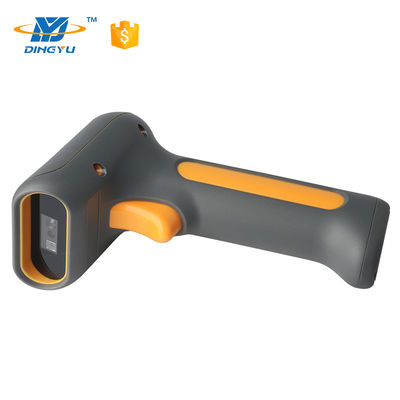

Product Images

Application Scenarios

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan: As professional manufacturers and developers of barcode scanners with 18 years of field experience, we maintain rigorous quality standards. Our professional QC team utilizes advanced testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All our barcode scanners are certified to meet CE, FCC, and ROHS standards.

Q2: What quality control measures do you implement?

DYscan: We conduct extensive durability testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes comprehensive testing before shipment.

Q3: What is the warranty period for your barcode scanners?

DYscan: We provide a 12-month warranty for all our barcode scanners.

Q4: How do you maintain stable performance across your products?

DYscan: We employ flow line production throughout our manufacturing process. Each product undergoes at least four quality tests before delivery to ensure consistent performance.

Q5: Do you offer OEM or ODM services for barcode scanners?

DYscan: We provide comprehensive OEM services including custom branding for logos, packaging, and documentation. Our technical team also supports ODM services for specialized requirements.

Q6: What are your company's strengths?

DYscan: As a professional scanner manufacturer, we maintain specialized departments each led by experienced directors. Our R&D department focuses on product innovation, the production department handles manufacturing and testing, while our Marketing and Sales department provides comprehensive customer support.

Q7: Are drivers required for your scanners?

DYscan: No driver installation is needed. Our scanners support plug-and-play functionality across multiple platforms including Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
