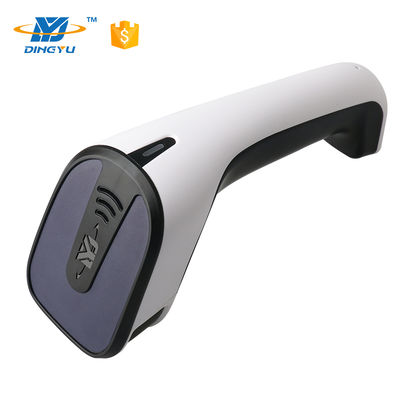

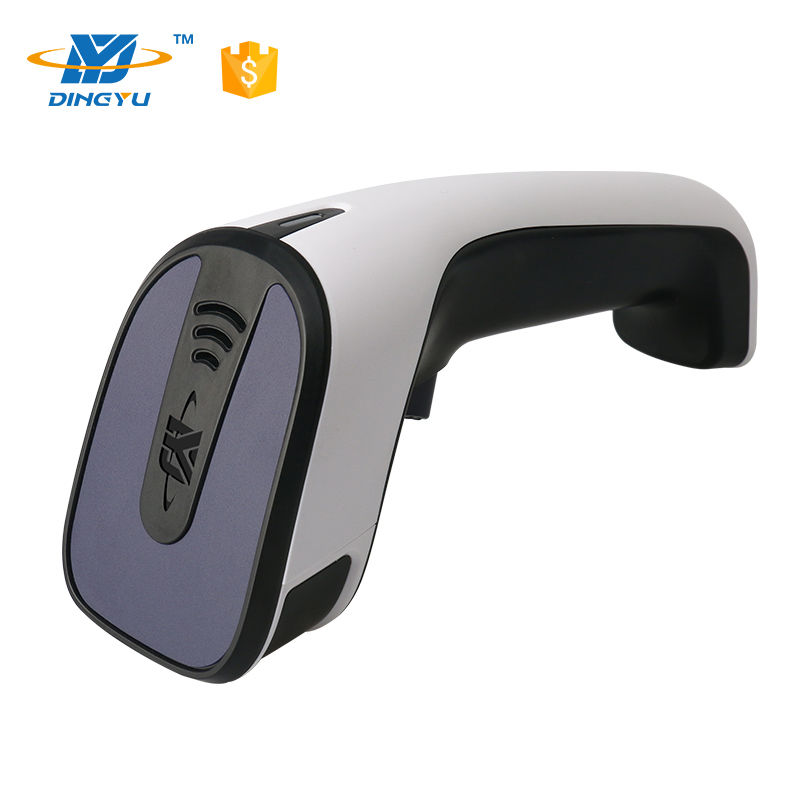

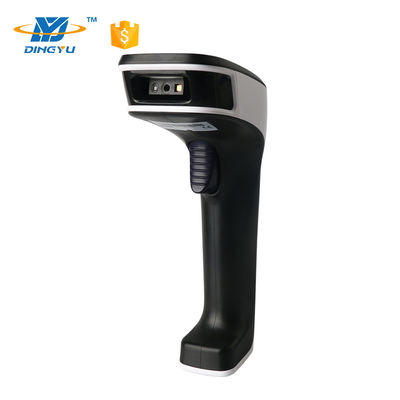

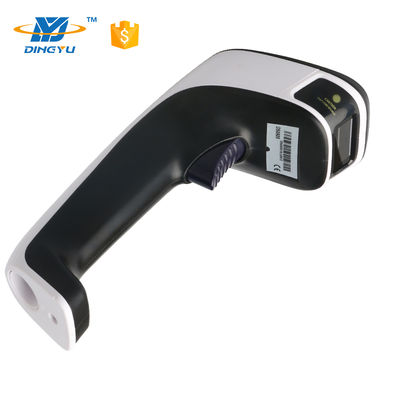

Name: DS5600 1D Barcode Scanner with 300 Scans/sec Speed and USB Interface
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

บ้าน ผลิตภัณฑ์เครื่องสแกนบาร์โค้ด 1D

DS5600 1D Barcode Scanner with 300 Scans/sec Speed and USB Interface

รายละเอียดสินค้า:

การชำระเงิน:

จำนวนสั่งซื้อขั้นต่ำ:	1

ติดต่อ

รายละเอียดสินค้า

หมายเลขรุ่น:	DS5600	ประเภทอินเตอร์เฟส:	USB
ความเร็วในการสแกน:	300 สแกน/วินาที	องค์ประกอบสแกน:	CMOS
ซีพียู:	32 บิต	ปณิธาน:	2500
ความแม่นยำในการอ่าน:	3mil/0.076mm	ความเร็วในการถอดรหัส:	300 ครั้ง/วินาที
ความชัดลึก:	10mm-600mm	พิมพ์คอนทราสต์:	20%
น้ำหนัก:	110 กรัม	มิติ:	l180mm * w60mm * h80mm
แหล่งจ่ายไฟ:	DC 5V@80MA (ทำงาน)	อุณหภูมิการทำงาน:	-20ºCถึง50ºC
อุณหภูมิการจัดเก็บ:	-40ºCถึง60ºC
เน้น:	1D barcode scanner with USB interface , DS5600 barcode scanner 300 scans/sec , high-speed 1D barcode scanner USB

High Performance 1D CCD Barcode Scanner

DS5220-1D is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. It reliably reads barcodes from paper, products, screens, and other media surfaces.

Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset tracking applications.

Key Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D barcode formats
High-performance processor with fast decoding (3mil resolution)
Multi-language and system support
USB interface connectivity
Wide application in supermarkets, warehouses, mobile payments, and chain stores

Technical Specifications

Performance

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading Precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed	300 times/second
Depth of Field	20mm-680mm
Scan Modes	Manual, Continuous, Auto Sense, Flashing, control command
Prompt Method	LED indicator, buzzer
Scan Angle	Pitch: ±60°, Roll: ±30°, Skew: ±60°
Print Contrast Signal	≥20%
Ambient Light	Dark environment to indoor natural light
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.

Physical Parameters

Weight	≈160.8g (without cable)
Dimensions	68.4mm × 170.6mm × 87.6mm
Communication	USB, USB-COM
Interface	USB, USB-COM
Power Supply	DC 5V@80mA (operating)

Environmental Specifications

Operating Temperature	-20°C to 50°C
Storage Temperature	-40°C to 60°C
Humidity	5% to 95% (non-condensing)
Transport Vibration Test	10H@125RPM

Included Accessories

Cable	USB Cable for connecting to host devices
	RS232 Cable with USB power supply for host connection

Frequently Asked Questions

Q1: How do you ensure high quality barcode scanners?

DYscan: As professional barcode scanner manufacturers with 18 years of field experience, we maintain strict quality control with dedicated QC teams and testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All products meet CE, FCC, and ROHS certifications.

Q2: What quality control measures do you implement?

DYscan: We conduct rigorous testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes comprehensive testing before shipment.

Q3: What is the warranty period?

DYscan: 12-month warranty coverage.

Q4: How do you maintain stable performance?

DYscan: Our assembly line production process ensures consistency, with each product tested at least 4 times before delivery.

Q5: Do you offer OEM/ODM services?

DYscan: We provide OEM services including custom logos, packaging, and manuals. Our technical team supports ODM development projects.

Q6: What are your company strengths?

DYscan: As a specialized scanner manufacturer, we maintain dedicated departments for R&D, production, testing, marketing, sales, and customer service to ensure comprehensive support.

Q7: Are drivers required for operation?

DYscan: No drivers needed - our scanners support plug-and-play functionality with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
