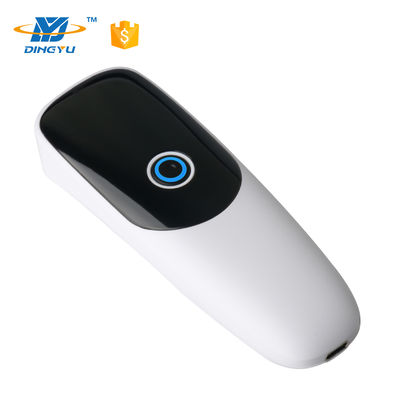

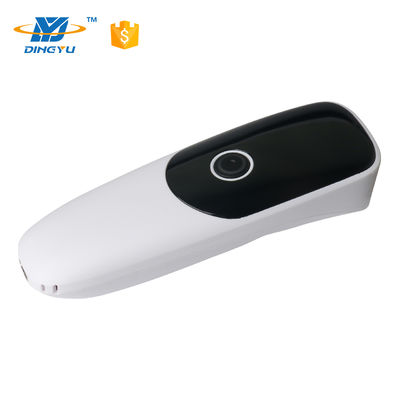

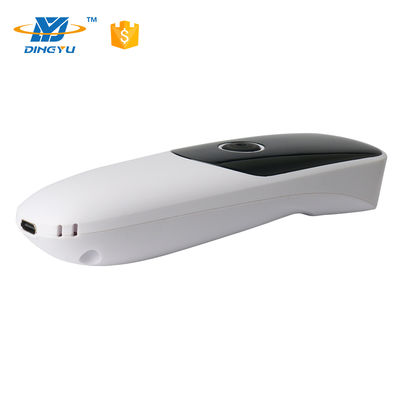

Name: DYscan DI9130-2D Bluetooth 2D Barcode Scanner with CMOS Sensor
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 28.00 USD
Availability: InStock

บ้าน ผลิตภัณฑ์เครื่องสแกนบาร์โค้ดแบบไร้สาย

DYscan DI9130-2D Bluetooth 2D Barcode Scanner with CMOS Sensor

รายละเอียดสินค้า:

การชำระเงิน:

จำนวนสั่งซื้อขั้นต่ำ:	1

ติดต่อ

รายละเอียดสินค้า

รุ่นหมายเลข:	DI9130-2D	ประเภทอินเตอร์เฟส:	ดองเกิลบลูทู ธ
ความเร็วในการสแกน:	35ซม./ส	องค์ประกอบสแกน:	CMOS
ความชัดลึก:	20-500มม	โหมดสแกน:	คู่มือความรู้สึกอัตโนมัติ
พิมพ์คอนทราสต์:	20%	น้ำหนัก:	70 กรัมไม่มีสายเคเบิล
ขนาด:	ยาว130มม. * กว้าง47.5มม. * สูง24มม.	ส่วนต่อประสาน:	ประเภท C
ลดความสูง:	1.5m	ความแม่นยำในการอ่าน:	4mil/0.1mm
ความจุแบตเตอรี่:	1200mAh	เวลาชาร์จ:	ประมาณ 3.5 ชั่วโมง
เวลาทำงาน:	8 ชั่วโมง
เน้น:	Bluetooth 2D barcode scanner , wireless barcode scanner with CMOS sensor , DYscan DI9130-2D barcode scanner

Mini 2D Wireless Bluetooth Bt Barcode Scanner Quickly Reads Android Phones

Product Attributes

Attribute	Value
Model NO.	DI9130-2D
Interface Type	Dongle Bluetooth
Scan Speed	35cm/S
Scan Element Type	CMOS
Item Name	Bluetooth Portable 1d 2D Laser CMOS Qr Barcode Scanner
Depth of Field	20-500mm
Scan Mode	Manual, Auto Sense
Print Contrast Signal	20%
Ambient Light	Dark Environment, Indoor Natural Light
Symbologies	1d and 2D
Weight	70g Without Cable
Dimension	L130mm * W47.5mm * H24mm
Interface	Type C
Drop Height	1.5m
Transport	10h@125rpm
Reading Precision	4mil/0.1mm
Battery Capacity	1200mAh
Battery Charging Time	About 3.5 Hours
Continuous Working Time	8hours
Transport Package	17011040mm
Specification	17011040MM
Trademark	DYscan
Origin	China
HS Code	8471900090
Production Capacity	50000

Product Description

Bluetooth Portable 1D 2D Laser CMOS QR Barcode Scanner Reader

The DI9130-2D is a high-performance 2D Bluetooth and wireless 2.4G barcode scanner featuring leading CMOS image recognition technology. It efficiently reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehouse logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory.

Technical Specifications

Scan Type	CMOS
Light Source	White light
CPU	32-bit
Resolution	640*480
Reading precision	≥4mil/0.1mm(PCS90%,CODE 39)
Decoding speed	35CM/S
Depth of field	20-500mm
Scan Mode	Manual, Auto sense
Scan angle	Pitch:±60°, Roll: ±360°, Skew: ±55°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light

Supported Symbologies

1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5 (Straight 2 of 5), Codabar (NW-7), MSI, GS1 Databar (Omnidirectional, Limited, Expanded), etc.
2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec, etc.

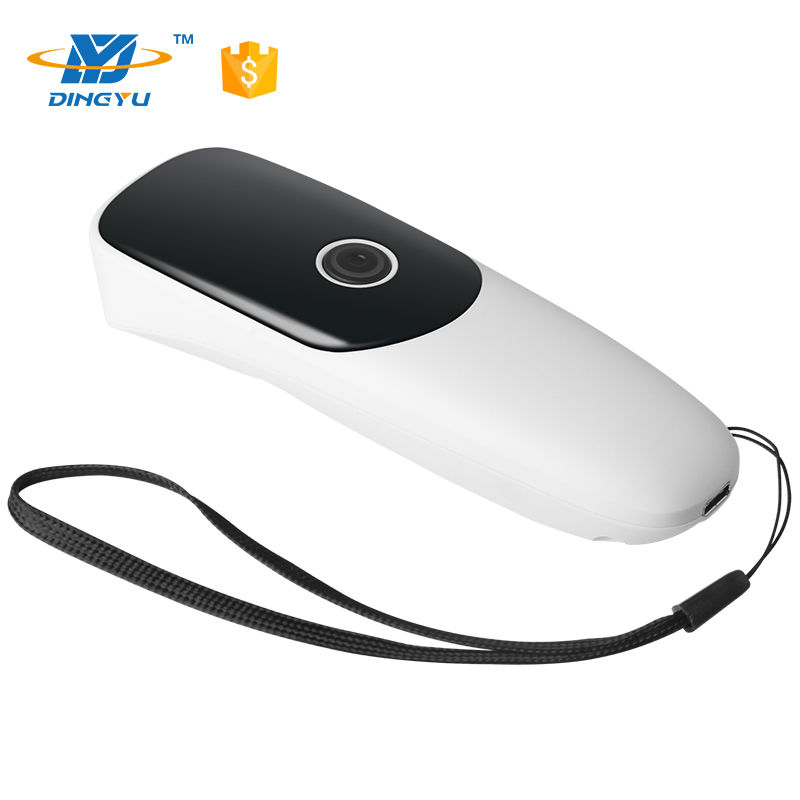

Product Images

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan: As a professional manufacturer and developer with 18 years of field experience, we maintain strict quality control with our professional QC team and testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, and ROHS certifications.

Q2: What quality control measures do you implement?

DYscan: We conduct wire bend tests for 1 million cycles, button tests for 1 million presses, and test all devices before shipment.

Q3: What is the warranty period for your barcode scanners?

DYscan: 12 months warranty.

Q4: How do you maintain stable performance?

DYscan: We implement flow line production throughout the manufacturing process. Each product undergoes at least 4 tests before delivery.

Q5: Do you offer OEM or ODM services?

DYscan: We provide OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services.

Q6: What are your company's strengths?

DYscan: As a professional scanner manufacturer, we have specialized departments including R&D for new product development, production for manufacturing and testing, and marketing/sales with dedicated customer service.

Q7: Do I need to install drivers?

DYscan: No. Our scanners support plug-and-play functionality and are compatible with Windows, Mac OS, iOS, Linux, UNIX, and Android without requiring driver installation.
